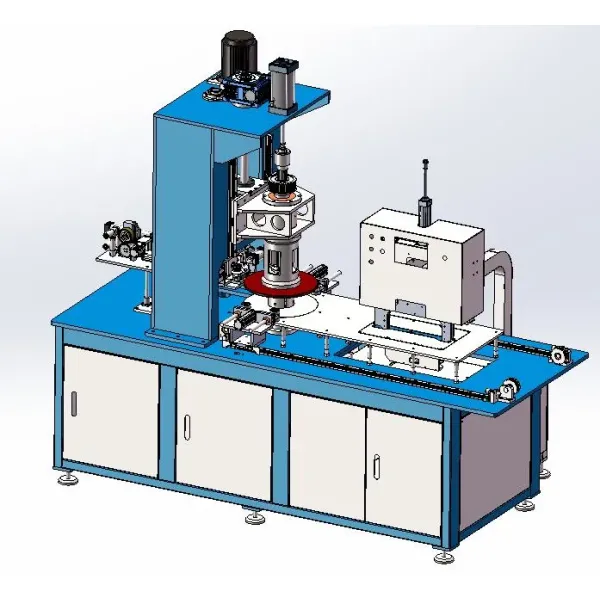

Full Automatic Cable Coiling And Wrapping Machine Finished Cable Packaging Machine

This machine is suitable for the automatic processing of the full shrinkage film packaging and binding after the construction wire is rolled .

Configuration

1246 Coiling mainframe
1. Applicable cable types: 1.5-6 mm² building wires; The range of cable allowed is Φ1.5-8mm (Flexible)
2. Design speed of the work head: 780 RPM/MAX.
3. Wire coil dimension:
Outside diameter Max. Φ400 mm,
height 50-100 mm;
the inside diameter of wire coil : Φ120-Φ200mm

4.Driving motor:

Coiling system: 5.5 kw × 4 P AC variable frequency motor + inverter. Traverse system: Mitsubishi 400 W servo motor + servo driver.
Touch screen : 10 inch Siemens

Belt conveyor (PDSS-1700)
1.Specification: 1700 L*740 W*550 H (height adjustable ±50 mm) 2.Rack: Carbon steel spray paint treatment
3.Belt specification: 600 W*3 mm PVC belt 4.6.4.Belt color: black 5.Motor: 0.4 kw Taiwan Chengbang gear motor
6.Power: 3 P AC 380 V 50 HZ
7.Conveying speed: 10 m/min( fixed speed)

Sleeve type heat shrink film wrapping machine
Automatic sleeve type heat shrink film wrapping machine is a fully automated unmanned packaging machine, automatic providing film and coil conveyor system, all the action finished by the robot independently without human intervention
1.Packing is sleeve type, hollow in middle, heat shrinkable packer around
2.Automatic heat shrinkable film machine features:
a.When the coil size changes, the adjustment is very simple, just replace the film
b.Automatic feeding material, the length and diameter are adjusted by the combination of electric eye and time automatically , with induction motor, automatic coiling waste.
c.Thermostat adopts imported digital thermostat, sealing knife adopts US DuPont fluoroplastic coating anti-sticky high temperature aluminum alloy knife, sealing line is strong, not crack, not coking, do not
smoke, zero pollution.
d.Equipped with imported detection of photoelectric, horizontal and vertical detection each one group, easy to switch options, can easily complete sealing

Robotic arm
1.The robot is 6-axis industrial robot, adopt high-speed small inertia servo motor and high-precision control technology, compact structure, high joint speed, High dynamic response, high precision, overload capacity, the use of bus structure, easy to expand application. Mainly used to carry out the fixed volume of the coil collection, move, packing, heat shrinkage and finished palletizing processes.
Main parameters:
1.Effective load: Max.50 KG
2.Structure: tandem
3.Axis number: 6 axis
4.Repeated positioning accuracy: <±0.15
5.Max working range (the first axis): ±180°
6.The second axis: +80°/-135°
7.The third axis: +225°/-80°
8.The fourth axis: ±360°
9.The fifth axis: ±120°
10.The sixth axis: ±450°
11.Max angel ( the first axis): ±130°
12.The second axis: ±130°
13.The third axis: ±130°
14.The fourth axis: ±250°
15.The fifth axis: ±250°
16.The sixth axis: ±355°
17.Body weight: 550KG
18.Way of installation: floor / rack
19.Around temperature: 0-45 ºC

Features
Major assemblies brand
1.Variable frequency motor: Chinese famous brand
2.Inverter: Chinese famous brand
3.Low voltage appliance: German / Japan brand
4.PLC: Siemens
5.Touch screen: Siemens
6.Temperature controller: Japan RKC
